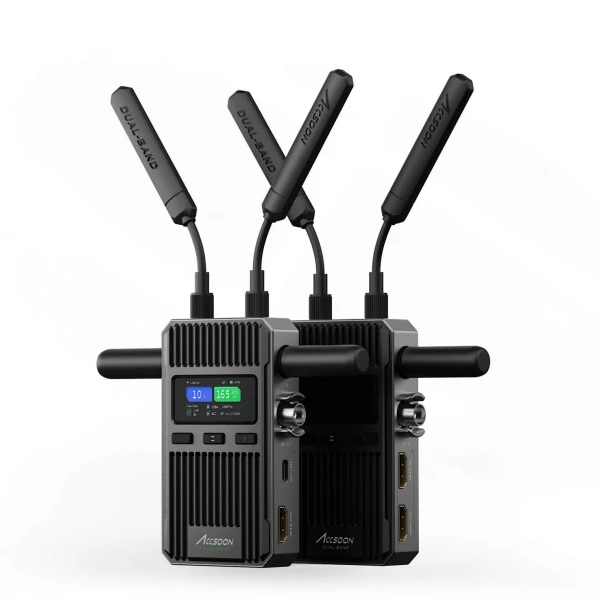

CineView 2 SDI 1 TX + 1 RX

Accsoon CineView 2 SDI TX + 1 RX

• 2.4GHz + 5GHz Dual Band Transmission
• Transmit Up to 1500ft/450m
• Latency Less Than 50ms
• Monitoring on Up to 4 Devices
• 1080P 60fps
• SDI/HDMI In&Out
• HDMI Loop Out
• No Fan, No Noise
• UVC Live Streaming

The CineView 2 is the latest addition to Accsoon esteemed CineView product family. Expanding on Accsoon US patented 2.4GHz+5GHz Dual-Band technology and featuring an all-new antenna design, the CineView 2 can seamlessly transmit 1080P 60fps video and audio signals across a 1500ft (450m) line of sight range, all while maintaining an impressively low latency of under 50ms.

Powered by DC source and NP-F battery and USB-C, the CineView 2 also has automatic channel selection for optimal transmission, a group pairing knob on the TX & RX, and supports CineView 2 SDI. With no fan, no noise, and UVC live streaming capabilities, the CineView 2 is a compact and versatile option for professional monitoring. It also allows for monitoring on up to four devices and is compatible with both iOS and Android devices. With its new antenna design and market-proven wireless stability, the CineView 2 offers a stable connection even over longer distances, making it a reliable choice for wireless video transmission.

Specifications Transmitter
Video Input:    HDMI, 3G SDI
Video Output:    HDMI Loop-Out
SDI Input Format:    1080p: 23.98/24/25/29.97/30/50/59.94/60fps Level A/B 1080i: 50/59.94/60i
720p: 50/59.94/60p
HDMI Input Format:    4096*2160: 23.98/24/25/29.97/30/50/59.94/60p 3840*2160: 23.98/24/25/29.97/30/50/59.94/60p
1080p: 23.98/24/25/29.97/30/50/59.94/60p
1080i: 50/59.94/60i
720p: 50/59.94/60p
HDMI Loop-out Format:    Identical to the HDMI/SDI video input
DC Port:    5.5mmx2.1mm, center positive
DC Voltage:    7.4~16.8V
Battery:    Compatible with NP-F550, NP-F750, NP-F970
USB-C Power Input:    USB-C 5V/3A
Audio:    44.1KHz/48KHz 16/20/24bit
Latency:    ＜50ms (Camera latency not included)
Display:    1.47 inch Full-Color LCD Screen
Transmission Power:    2.4GHz: 20dBm 5GHz: 20dBm
Transmission Range:    1500ft/450m (No obstacles, no interference)
Power Consumption:    <6W
Operating Environment Temperature:    -10~40℃
Dimensions (Antennas Not Included):    60mm x 27.5 mm x 106.5mm
Weight (Antennas Not Included):    210g

Specifications Receiver
Video Output:    HDMI, 3G SDI, UVC
SDI Output Format:    1080p: 24/25/30/50/60p Level A
1080i: 50/60i
720p: 50/60p
HDMI Output Format:    1080p: 24/25/30/50/60p
1080i: 50/60i
720p: 50/60p
DC Port:    5.5mmx2.1mm, center positive
DC Voltage:    7.4~16.8V
Battery:    Compatible with NP-F550, NP-F750, NP-F970
USB-C Power Input:    USB-C 5V/3A
Audio:    44.1KHz/48KHz 16/20/24bit
Latency:    ＜50ms (Camera latency not included)
Display:    1.47 inch Full-Color LCD Screen
Transmission Power:    2.4GHz: 20dBm
5GHz: 20dBm
Transmission Range:    1500ft/450m (No obstacles, no interference)
Power Consumption:    <5W
Operating Environment Temperature:    -10~40℃
Dimensions (Antennas Not Included):    60mm x 27.5 mm x 106.5mm
Weight (Antennas Not Included):    210g
